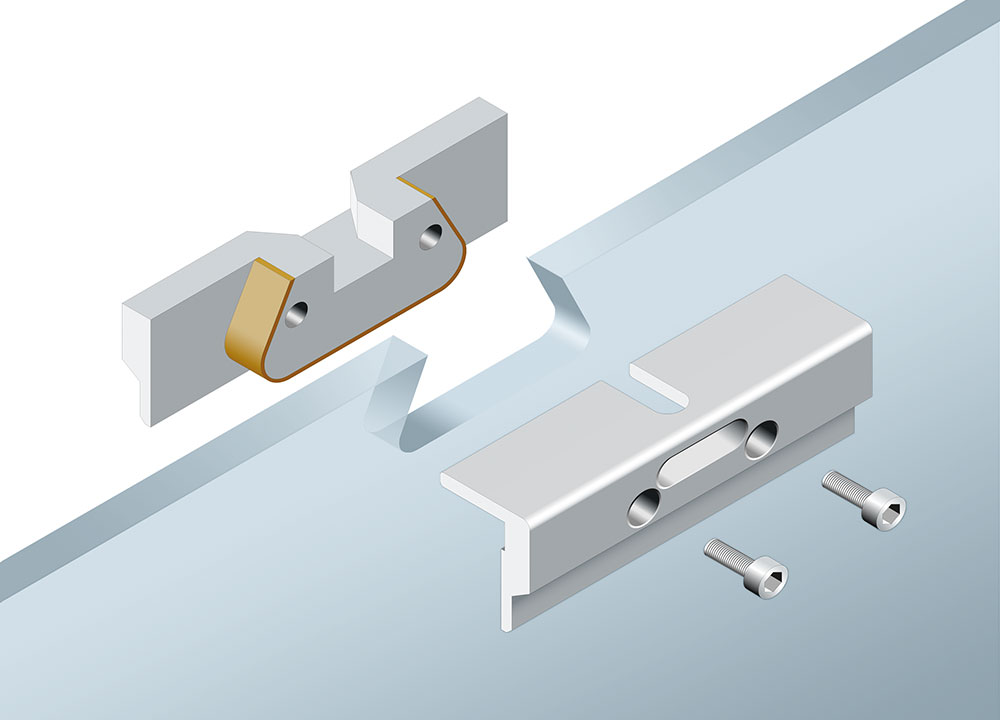

Brackets for sliding pocket glass doors
The bracket is a fastening system for glass doors that allows to apply a glass door to a sliding pocket system.
- Max door panel weight: 220 lbs
- Dimensions: W=3-7/8" x H=1-3/8" x Thk=1"
- Supported glass thickness: 3/8"
Note: they require two “dovetail” milling incisions on top of the door panel.
Standard with ECLISSE glass doors.

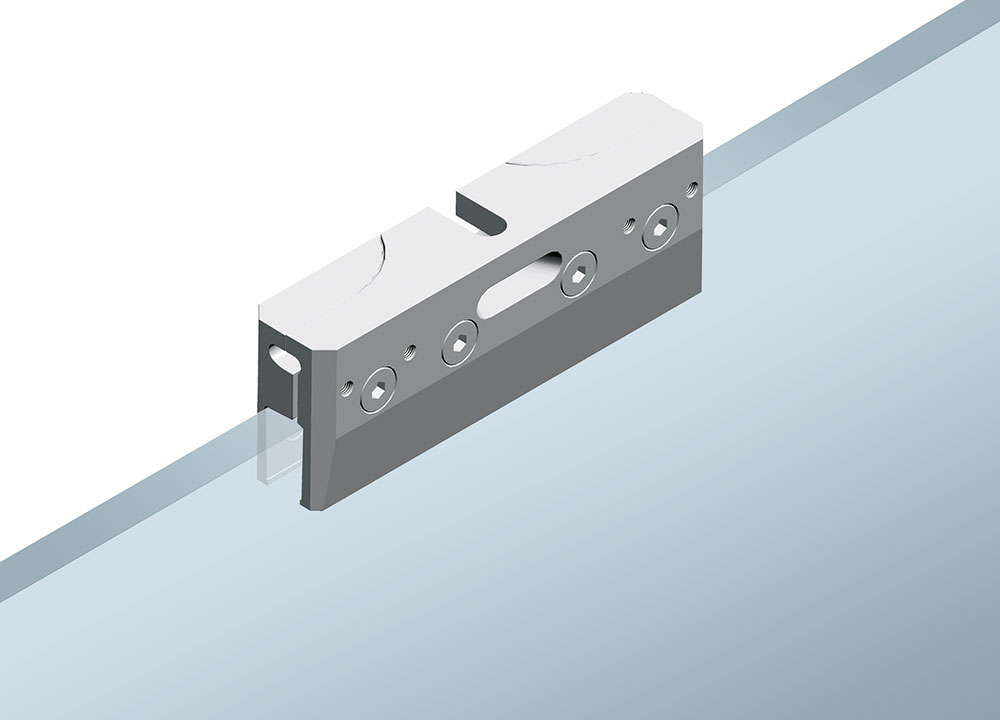

Clamps for sliding pocket glass doors
Clamps are a different fastening system for glass doors. They are a compression fit application and do not require special processing for their installation as they are fastened directly on top of the glass panel, ensuring its locking.
- Max door panel weight: 176 lbs
- Dimensions: W=5-3/4" x H=1-3/4" x Thk=1-1/8"
- Supported glass thickness: 3/8"
They are available in brushed nickel finish.
