Handles for glass doors

Handles for sliding and hinged glass doors

Download



Handles for glass sliding pocket doors

Several handles types are available for all-glass doors and for glass and aluminium doors specifically.
All-glass doors are supplied as standard with a fused glass handle. Glass and aluminium doors are supplied as standard with a simple handle, without lock.



Handles for all-glass sliding pocket doors:

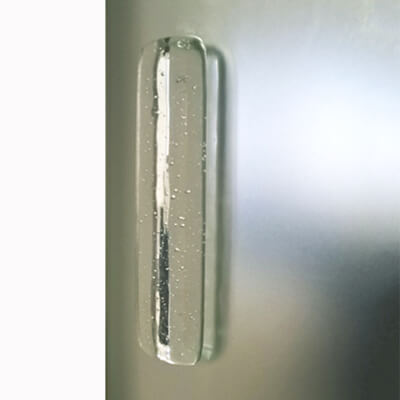

GLASS FUSED HANDLE

STANDARD HANDLE
1" x 4-1/8" x 3/8"*

SIROS WITHOUT CYLINDER

SIROS without cylinder
3-7/8" x 3-1/2" x 1/4"*

SIROS WITH CYLINDER

SIROS with cylinder
3-7/8" x 3-1/2" x 1/4"*

PAIR OF BAR HANDLES

BAR HANDLES
Ø3/4" x 11-3/4" x 2-1/8"*

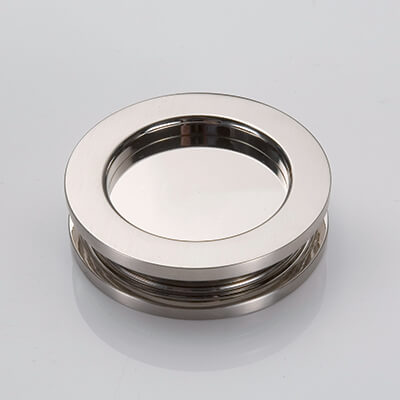

NISÍ

NISÍ
Ø2" x 1/8"*

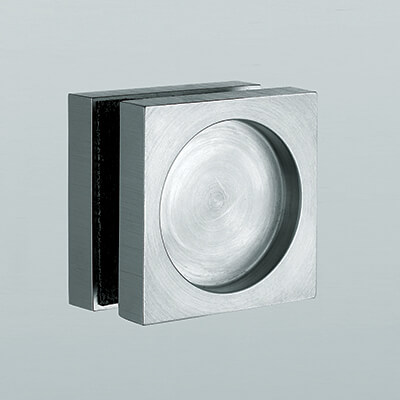

MYRTA

MYRTA
2" x 2" x 3/8"*

THERA

THERA
2-3/4" x 4" x 1/8"*

KOS

KOS
Ø1" x 1"*

NOTES:

  • Handles dimensions are indicated as WxH. Dimensions with an asterisk indicate the handle protrusion from the glass, on each side.
  • Siros is not suitable for ECLISSE CLASSIC COLLECTION.
  • Siros without cylinder, Nisí and Thera allow the glass panel to slide inside the wall completely.
  • The standard handle, Siros with cylinder and Myrta don't allow the glass panel to slide inside the wall completely on ECLISSE SYNTESIS FLUSH COLLECTION models.
  • All metal handles are available in polished chrome and in satin chrome finishes, except for bar handles which are available in polished stainless steel and in satin stainless steel.

Handles for glass and aluminium single-glazed sliding pocket doors:


Handle for glass and aluminium sliding doors - single glass

Available in the same finishes as the aluminium frame

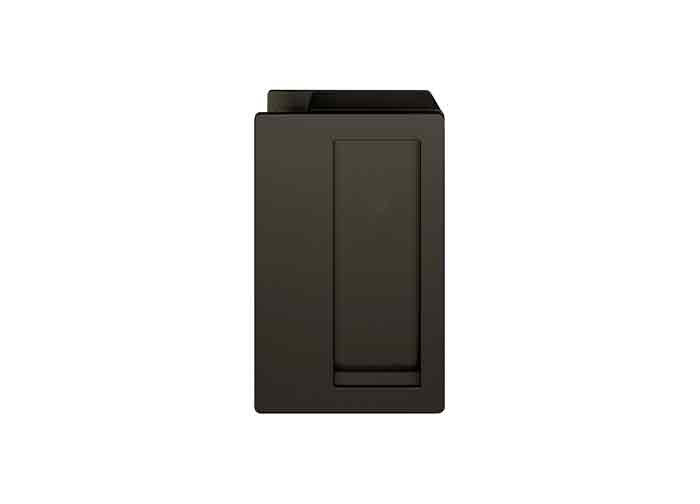

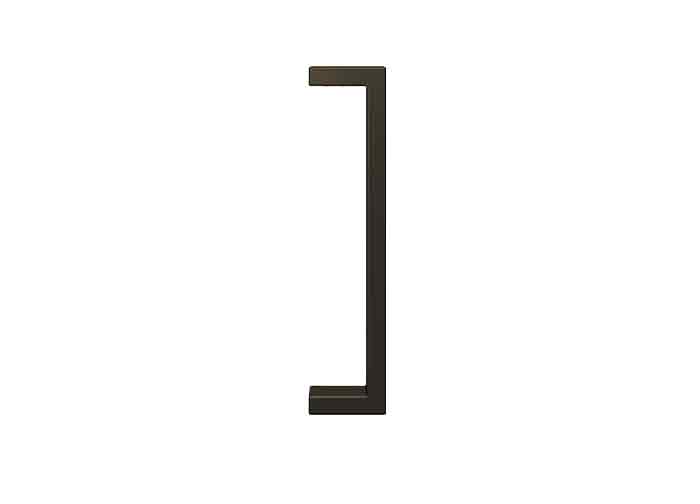

Single glass door - handle without lock

WITHOUT LOCK
(supplied as standard)

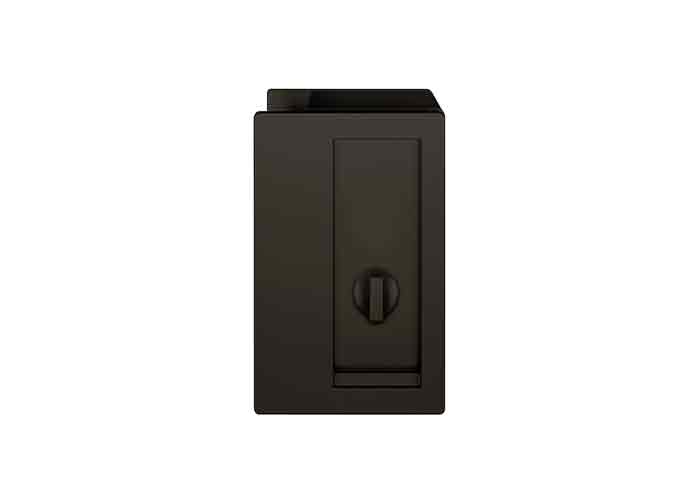

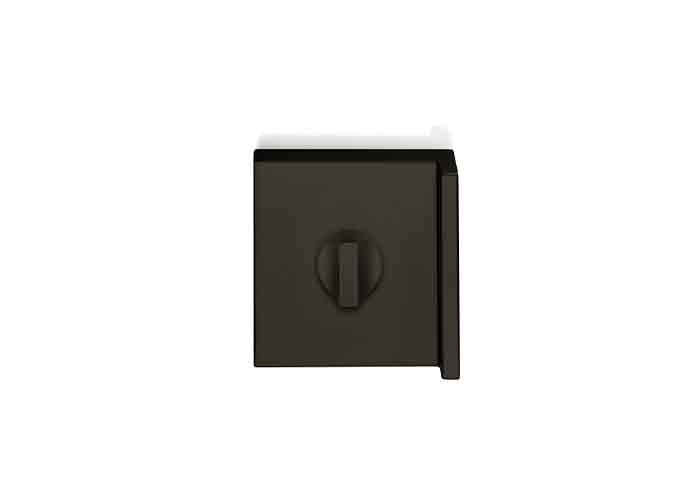

Single glass door - handle with thumb turn

WITH THUMB TURN
(optional)

Handles for glass and aluminium double-glazed sliding pocket doors:


Handle for glass and aluminium sliding doors - double glass

Available in the same finishes as the aluminium frame

Double glass door - handle without lock

WITHOUT LOCK
(supplied as standard)

Double glass door - handle with thumb turn

WITH THUMB TURN
(optional)




Handles for glass hinged doors

ECLISSE offers different handle options and several finishes for glass and aluminium doors, installed on ECLISSE Syntesis Swing or ECLISSE 40.



ZANTE - Handles for glass and aluminium hinged doors - single- and double-glazed doors


ZANTE - handle for glass and aluminium hinged doors

Available in the same finishes as the aluminium frame
Same for the plate (supplied as standard)

ZANTE - handle without lock

WITHOUT LOCK

ZANTE - handle with thumb turn

WITH THUMB TURN

40+one - Handles for glass and aluminium hinged doors - double-glazed doors


ECLISSE 40+one - handle for glass and aluminium hinged doors

Available in the same finishes as the aluminium frame
Same for the plate (supplied as standard)

ECLISSE 40+one - handle without lock

WITHOUT LOCK

ECLISSE 40+one - handle with thumb turn

WITH THUMB TURN
