Handles for wooden hinged doors

Design and push-pull handles for Syntesis Flush hinged doors

Download



Handles with washer for flush hinged doors - Cassiopea line

The Cassiopea handle is available without lock (the pair of handles only), with lock and keyhole, with lock and thumb turn or fitted for cylinder (not included). Designed with a magnetic latch to close softly and discretely, the bolt remains flush with the panel thickness when the door is open. It is attracted to the magnetic strike plate when closing, with no need to press the handle.

All options are available in satin chrome and matt black finishes.






Handles without washer for flush hinged doors - Pure line

From the Nuda Collection by Verum Italy, the Pure handle is available without lock (the pair of handles only), with lock and keyhole and with lock and thumb turn. Designed with a magnetic latch to close softly and discretely, the bolt remains flush with the panel thickness when the door is open. It is attracted to the magnetic strike plate when closing, with no need to press the handle.






Push-pull buttons

The door pull handle is a special handle with a push-pull button. The handle is only available for the pull version and is installed on the door panel side flush with wall. It is completed with a paintable covering cap to be positioned on the back side of the door panel.

Available in round (∅ 32 mm) or squared (30x30 mm) shape.

Not suitable for ECLISSE Syntesis Line Battente Double.



Handle with double pull lever

The handle is positioned on both sides of the door panel and has a special magnetic lock which allows the closure without the need of the mechanical block. It is available for both the push and pull versions and it has a size of 30x60 mm.

To be installed on 45 mm thick door panels only. For its installation a special processing on the door panel is required.

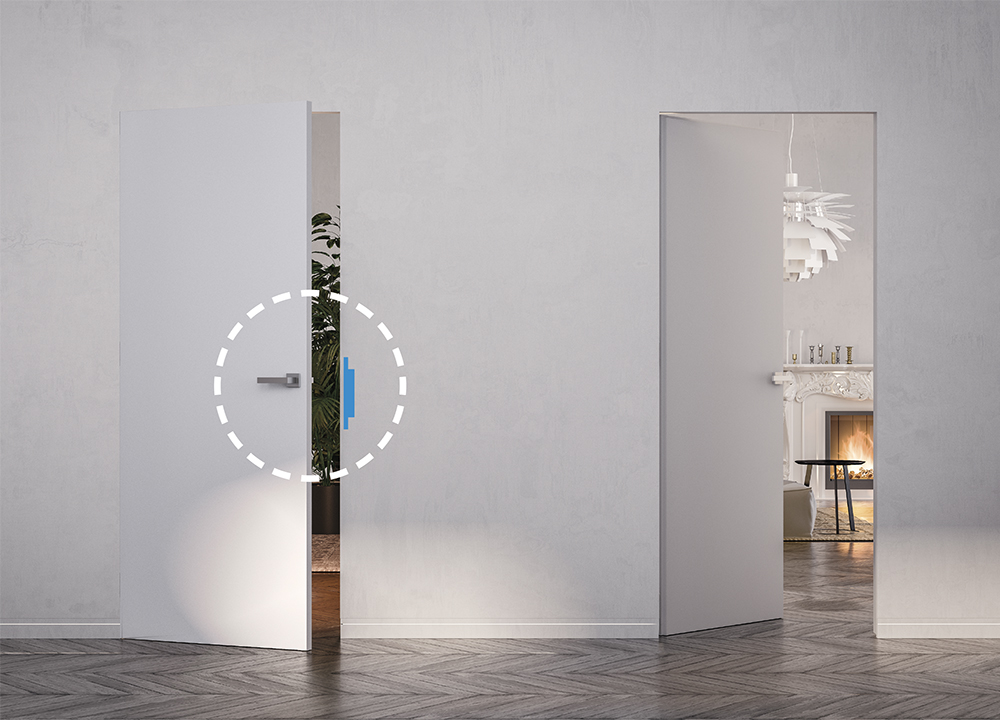

Electric strike

The electric strike for hinged door is an access control device for opening doors via an electric impulse that unlocks the lock. The activation mechanism (magnetic card, pushbutton, etc.) is not included.

The device requires the installation of a cylinder lock so that the door can be opened in the event of a power outage.
Recommended in combination with a moving handle and fixed knob combination.

Note: cannot be used with frames already installed.

Not compatible with ECLISSE Syntesis Line Battente Double.

Electric strike for wooden hinged doors
