    OVERVIEW
    ECLISSE Acoustic solution for pocket sliding door

    Acoustic pocket door

    Silence has more space

    Door, jambs and gaskets for sound insulation. The ECLISSE sliding pocket door system with high sound-proof performances reduces the noise through the rooms thanks to the activation of specific components that seal the entire door perimeter.

    How does an acoustic pocket door work?

    All the components that allow the sound insulation in a pocket door have been specifically designed to limit unwanted noises.

    • Acoustic door panel: the special stratigraphy ensures high sound-proof performances; 1-3/4" thick, it is supplied as standard with the accessories of the acoustic kit.

    • Acoustic jambs, already milled for the application of gaskets.

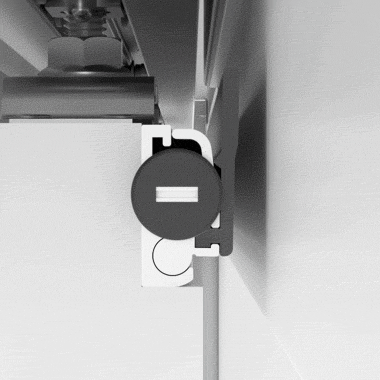

    • Gaskets and bumps: they are activated when the door is closed, sealing the vertical sides of the door hole, preventing the sound to pass through.

    • Magnets: they grant a perfect closing of the door, keeping it tight to the door post.

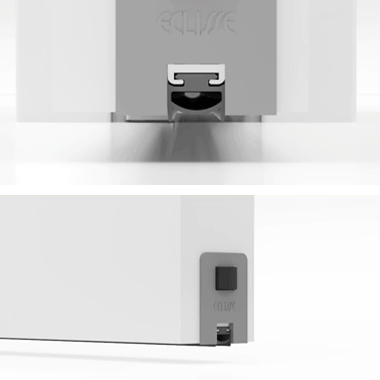

    • Weatherstrip: they are activated when the door is closed, sealing the upper and lower perimeter of the door.




    ECLISSE Acoustic 38 dB soundproof



    Watch the video and see how it works





    ECLISSE Acoustic 38 dB


    Available Finishes

    The acoustic sliding door panel can be supplied in raw Tanganyika walnut finish or lacquered in the RAL colors and combined with finishes and combined with 2x4 ECLISSE Single system, even if already installed.

    FEATURES

    Available versions

    ECLISSE Acoustic door panel and jambs are available in raw walnut Tanganyika and in lacquered RAL colors.

    The available finished wall thickness is 2x4, with DW from 24" to 36" and DH from 80" to 96".
    When applied, the acoustic kit reduces the clear passage size by 1/2".

    Strengths

    ECLISSE Acoustic is born as an integrated system able to insulate two adjoining rooms by the noise, through the application of elements created ad hoc.

    Bottom and upper weatherstrips, jambs and magnets work together to allow an acoustic absorption suitable for your needs.

    To complete the sound-proofing of the doorway, a special multi-layer door panel in also supplied as standard, with all the necessary milling for the installation of gaskets, bumps and the lock.

    ECLISSE Acoustic KIT - magnets

    MAGNETS

    ECLISSE Acoustic KIT - upper weatherstrip

    UPPER WEATHERSTRIP

    ECLISSE Acoustic KIT - bottom weatherstrip

    BOTTOM WEATHERSTRIP

    ECLISSE Acoustic KIT - bumps

    BUMPS

    Norms

    Noise abatement 38 dB (-1; -3).
    Test performed on a 890x2030 mm frame, installed to perfection, equipped with blind shell lock.

    UNI EN ISO 10140 - 2
    Laboratory measurement of sound insulation in buildings and building elements - Part 2: Measurement of acoustic insulation by air.

    UNI EN ISO 717 - 1
    Evaluation of sound insulation in buildings and building elements - Part 1: Sound insulation by air.
