Syntesis Swing Single

Door frame for single hinged door flush with the wall

Download
  • Pocket Doors Frames | Made in Italy
  • Products
  • Syntesis Flush Collection
  • Syntesis Swing Single
    • porta scorrevole filo muro

    Syntesis Slide

    Syntesis Slide Double

    Syntesis Luce Single

    Syntesis Luce Double

    Syntesis Swing Double

    Syntesis Areo

    Syntesis Tech

    Syntesis Baseboard
    OVERVIEW

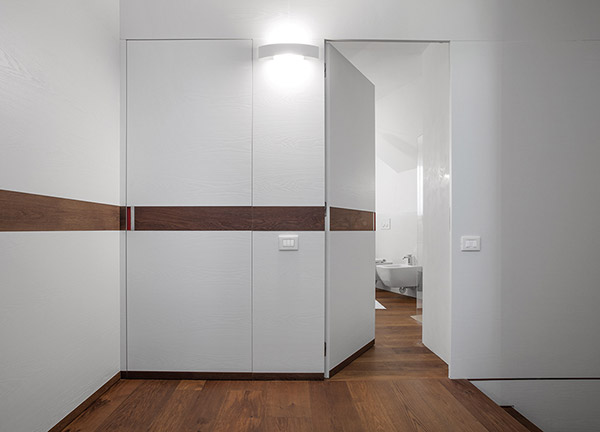

    ECLISSE flush-to-the-wall hinged door

    Flush doors with high customization

    Total freedom to your interior design

    ECLISSE Syntesis Swing is the solution that allows to install a hinged door without jambs that is flush-with-the-wall. With or without header, it grants a full integration between door panel, wall and ceiling.

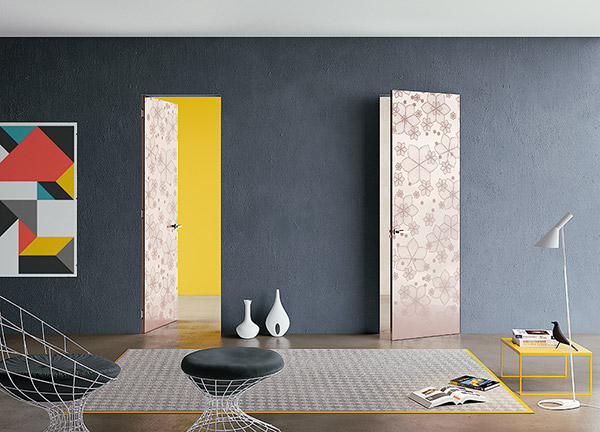

    Blend in or stand out?

    Depending on your taste, the door can be painted in the same color as the wall and also to be hidden completely from the view or alternatively, the door panel can be lacquered or decorated with finishing or prints that put them in clear prominence until they become real design elements.

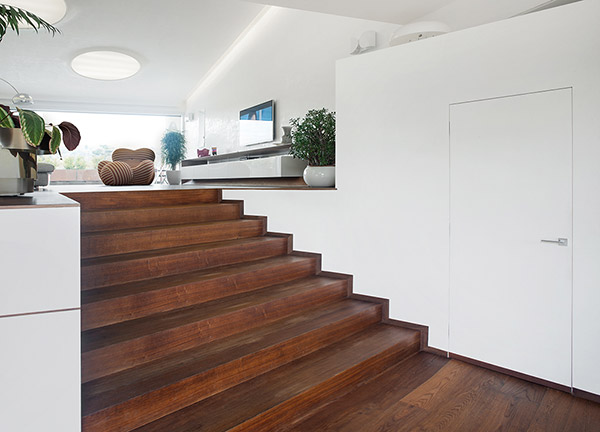

    ECLISSE flush-to-the-wall hinged door




    ECLISSE flush-to-the-wall hinged door


    Systems characterized by minimal design and clean lines

    The aesthetic and structural characteristics of ECLISSE Syntesis Swing are the perfect solution for a flush-to-wall swing door system. Using it with the ECLISSE Syntesis Slide and ECLISSE Syntesis Baseboard you get a consistent output characterized by linearity and clean lines.


    Want to know more about the product?

    Fill out the form and we will be right with you to fulfill your request




    ECLISSE flush hinged door frame




    * These fields are mandatory

    Try a different angle

    ECLISSE Syntesis Swing Single can also be supplied with an inclined upper edge, the ideal solution for sloping ceilings, attics or under-stair closets. The frame can be realized with different angles, both with or without header.

    ECLISSE Syntesis Swing Single with angled door is available only for pull version for solid and stud walls.

                 

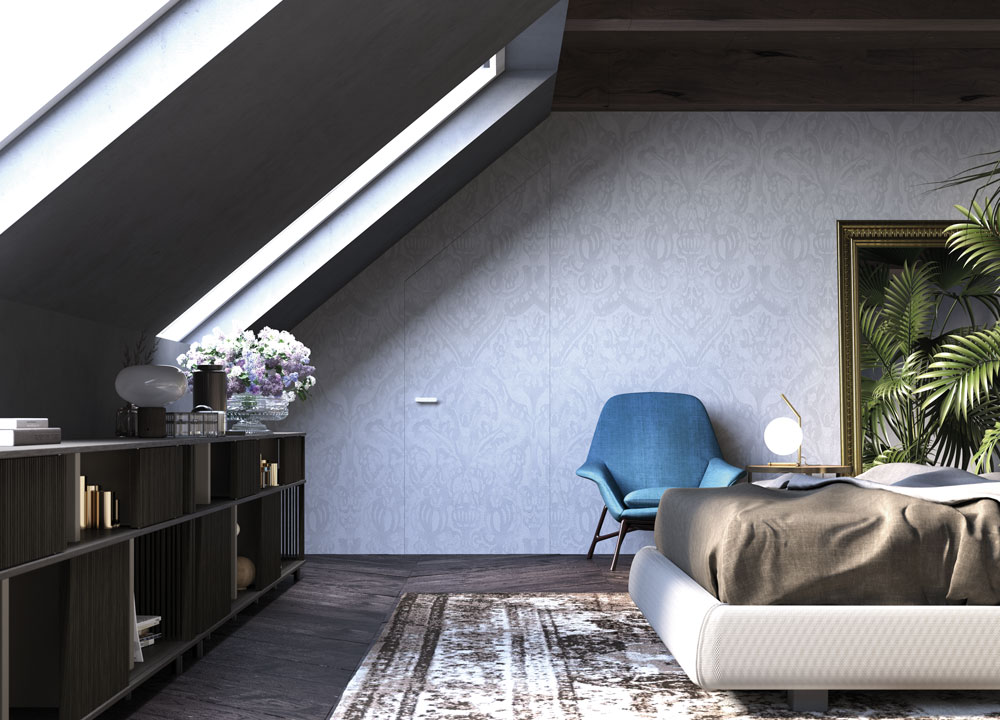

    ECLISSE flush-to-the-wall hinged door with inclined header
                 

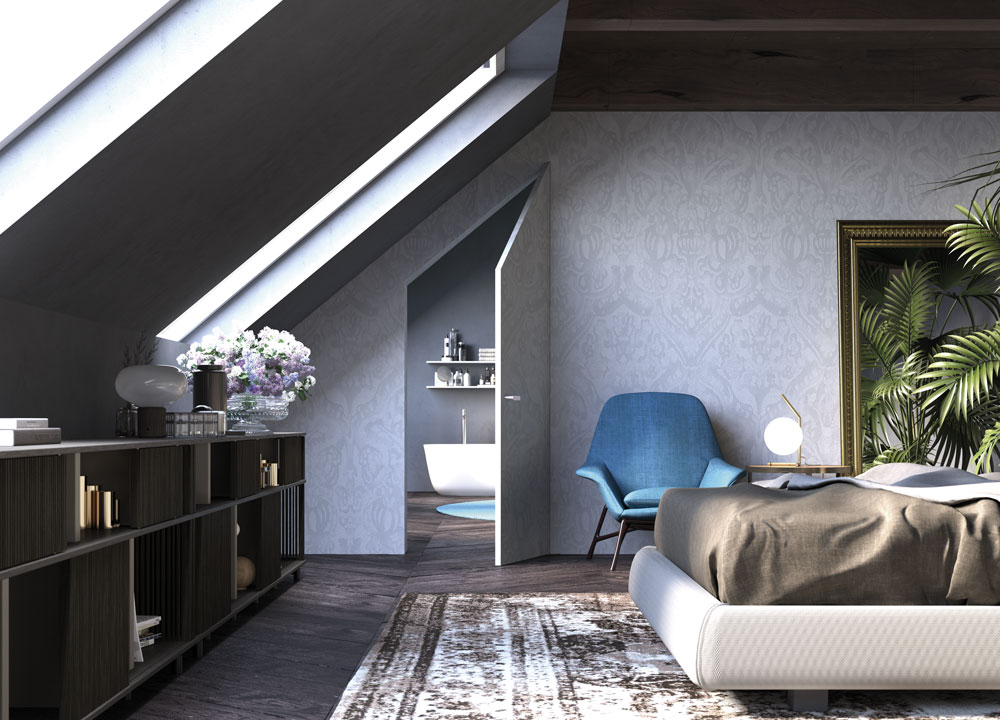

    ECLISSE flush-to-the-wall hinged door with inclined header
        
    Electric strike for wooden hinged doors

    Controlled opening

    The electric strike for hinged door is an access control device that allows to open doors unlocking the lock via an electric impulse. The activation mechanism (magnetic card, pushbutton, etc.) is not included.

    Note: cannot be used with frames already installed.

    Not compatible with ECLISSE Syntesis Swing Double.

    ▶︎  ELECTRIC STRIKE

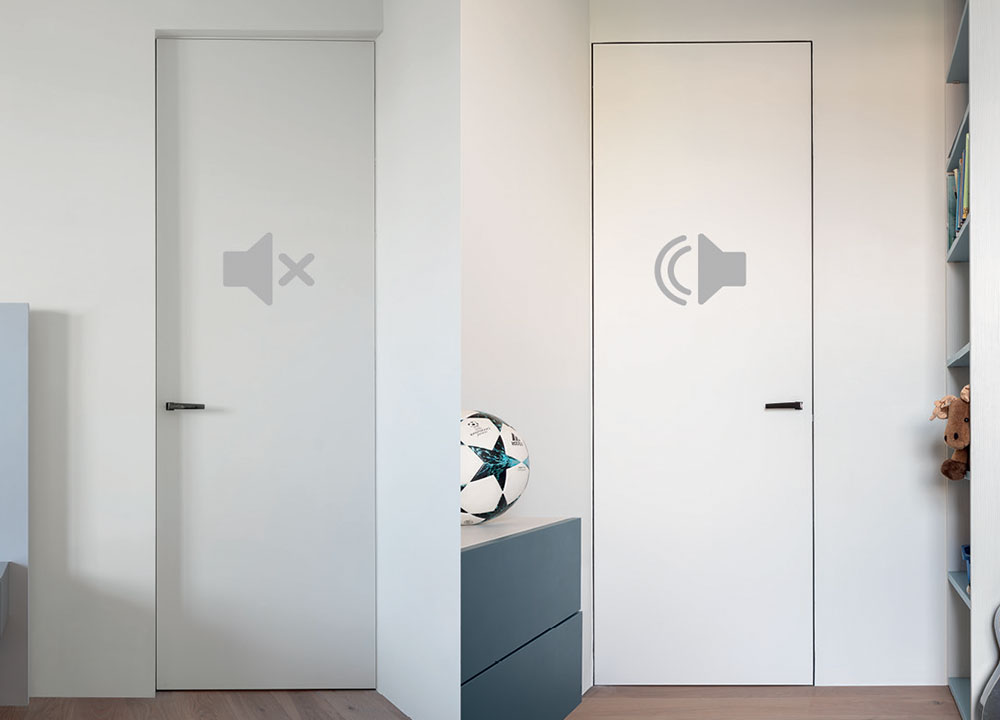

    Silence has more space

    The flush hinged door with acoustic performance

    ECLISSE Syntesis Swing Single, is now also available complete with acoustic kit, a solution with certified noise reduction up to 33 dB.

    What does the acoustic kit include?

    Flush door with acoustic performance
    ECLISSE flush-to-the-wall baseboard

    Formal coherence and rigour with a flush-to-wall skirting

    Flush-to-wall doors installed on ECLISSE Syntesis hinged and sliding frames can be combined with a flush-to-wall baseboard, thanks to a special aluminium profile that allows the skirting board to be fitted flush with the wall.
    The result is minimalism, linearity and the absence of protrusions. Even along the stairs.

    ▶︎  ECLISSE Syntesis Baseboard

    Formal coherence and rigor still, but with a twist

    The illusion of a totally flush wall with a play of light and volumes that only appear when changing your point of view. You can have this combining ECLISSE Syntesis doors with ECLISSE Delta, the innovative inclined baseboard with tapered terminal elements.
    The pure linearity of surfaces perfectly combined with a play of volumes.

    ▶︎  ECLISSE Delta

    ECLISSE Delta - inclined baseboard with patented tapered terminals
    FEATURES

    What you should know

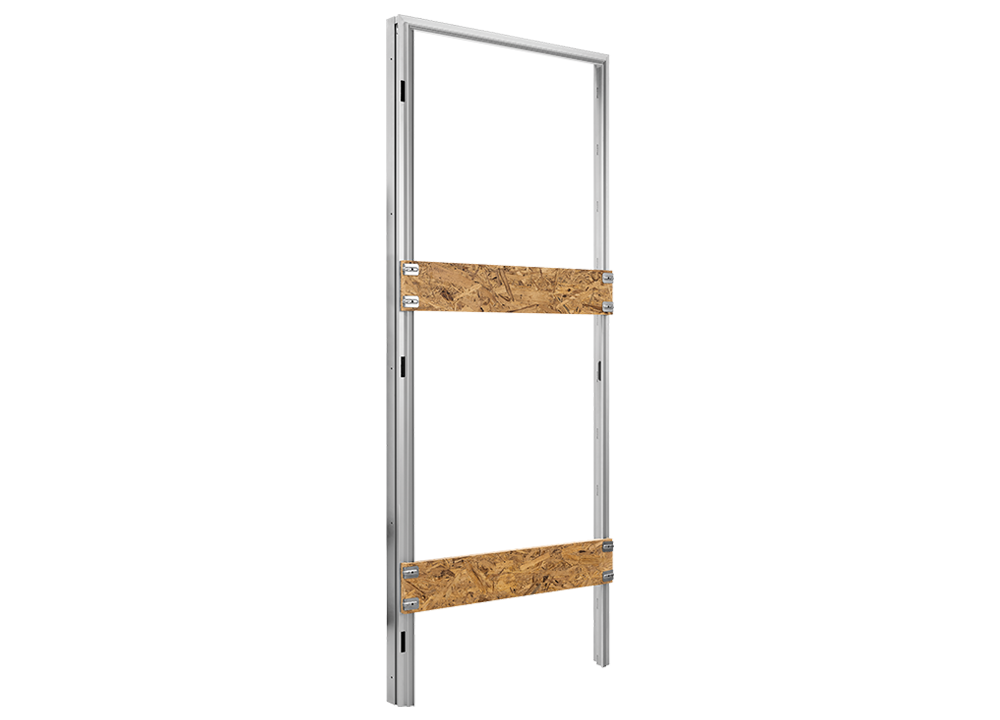

    ECLISSE Syntesis Swing is designed to simplify the life of the installer so to get the best possible result. It comes with a plastic shield to prevent it from dirt or scratches at construction site and is provided with spacer panels to ensure perfect squaring of the frame.

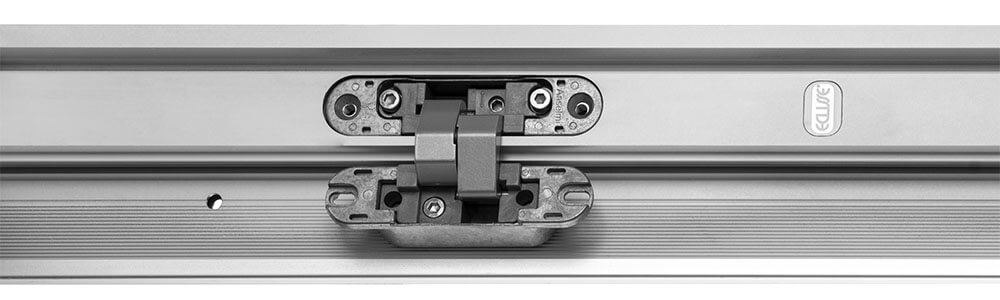

    ECLISSE Syntesis Swing concealed hinge

    Installation video: assembly of ECLISSE Syntesis Swing






    The acoustic kit for flush swing door

    What the acoustic kit includes.

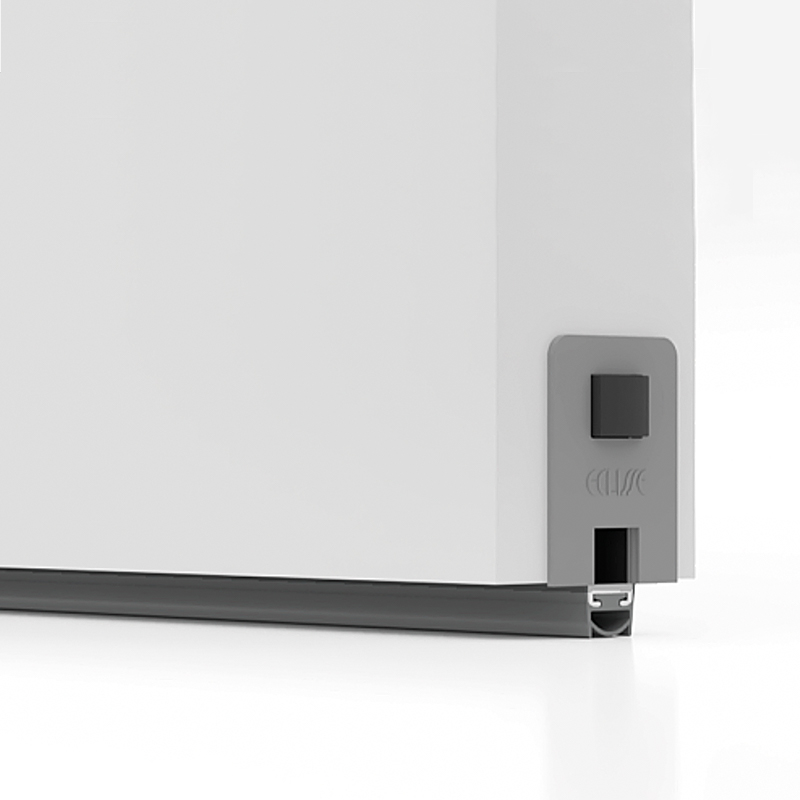

    Soundproofing weatherstrip for flush door with acoustic performance

    BOTTOM WEATHERSTRIP

    It is inserted into the bottom milling of the door panel and is adjustable in downward and tilt, for even pressure over the entire length.
    The weatherstrip raises and lowers with every opening and closing of the hinged door.
    The rounded, flexible shape envelops the gaps with precision.

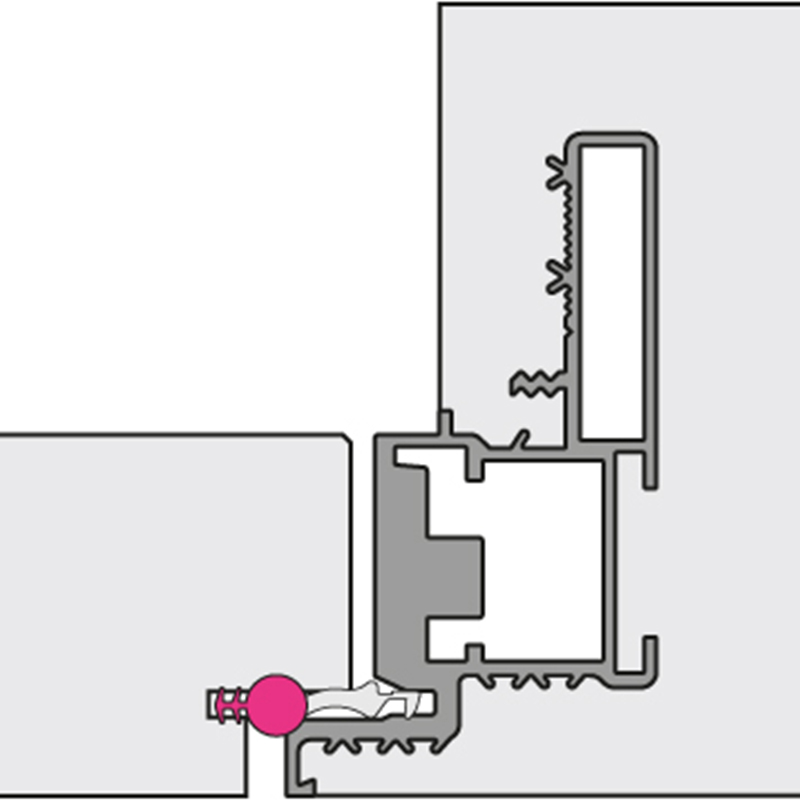

    Soundproofing gaskets for flush door with acoustic performance

    ACOUSTIC GASKETS

    Applied to the door, they seal it at the top and vertically. Linked to the bottom weatherstrip, the gaskets seal the entire door perimeter.



    Soundproofing door panel for flush door with acoustic performance

    DOOR PANEL

    The acoustic door panel is 1-3/4" thick and is supplied as standard with the necessary machining for the application of accessories. It is available in lacquered RAL colours or primer-coated, ready to be painted.
    To guarantee acoustic performance, the locks that can be applied are the handle only, the handle with thumb-turn or the handle with cylinder lock.

    DEDICATED HARDWARE

    The system includes special hardware with an additional gasket to support acoustic performance.



    DOORS AND ACCESSORIES
